Den stora tråden om Feinwerkbau 300S

Post by Tomaz » Mon Jan 21, 2008 9:04 pm

I denna tråd försöker jag sammanfatta all info om FWB 300S, som jag har samlat ihop....

Historien bakom FWB 300S


History of the FWB-300S
From research by Mike Driskill



1949: FWB FOUNDED
The company name Feinwerkbau Westinger & Altenburger KG was registered in Oberndorf, Germany, in April 1949. "Feinwerkbau" is chosen as the trade name.

1961: "SLEDGE" ACTION PATENT
Development of the famous "ride the rails" recoil-compensation action started in 1959.
German patent number DE PS 1,140,489, covering its design in detail, was granted to
Karl Westinger, Ernst Altenburger, and Edwin Wohrstein in February 1961.

1963: MODELS 110 AND 150
FWB's first recoilless gun, the model 150, was released to the market in January 1963.
In addition to the ingenious and simple means for eliminating felt recoil, the gun has a
fixed barrel, side cocking lever, and sliding breech (no doubt influenced by the
Anschutz 220 of 1959). The excellent trigger, fine workmanship, easy cocking, careful
attention to fine design details, and efficient and durable action make an immediate
impact in the marketplace. Not to mention its astonishing accuracy, of course.

While the basic action is the same as later models, the 150 looks quite different. The
cocking lever is unlatched by a hinged handle at the end (rather like a car door) and is
quite long, the end of the latch being even with the point where the barrel enters its
mount block. The stock looks more like what we'd associate with a deluxe sporter than
a match rifle today, with a long slim forend with rounded contours and a raked
checkered pistol grip, though with a vertically-adjustable buttplate. Available options
include a barrel sleeve weight and a Tyrolean stock.

In Germany, where target shooting is a national passion, the marketplace is much more
sensitive to small differences in price and features than we are here. FWB therefore
simultaneously introduces a less expensive version of the gun, the model 110. This is
externally identical to the 150, but eliminates the recoil-compensating system. The
action is thus mounted directly to the stock without internal rails, and the gun has slight
recoil. These are very rare today.

1969: MODELS 200 AND 300
Two revised models, the rare recoiling model 200 and recoilless model 300, replace the
110/150 in January 1969.

The barrel of these guns is 2 3/4 inches longer than the 150. The cocking geometry
was revised to reduce cocking effort, and the sidelever is shortened about 2 inches, so
that the "car door" latch ends at the rear of the barrel mount block. In response to more
refined competition from Anschutz and Diana, the trigger is revised for a finer action,
and now has four adjustments. The barrel sleeve and Tyrolean stock remain as the
most frequent optional features.

Early guns retain the model 150 stock, but this is soon revised. The new stock has a
similar profile shape, but with more angular edges, and a more vertical pistol grip which
is stippled rather than checkered, and has a small plastic hand stop plate at the bottom.

1972: MODEL 300S
The perfected recoilless Feinwerkbau spring-piston rifle replaces the model 300 in
June 1972 (the cheaper recoiling version, never very popular, is dropped). In spite of
the similarity in names, this differences between the 300S and 300 are really greater
than those between the 300 and 150.

The barrel is once again shortened to about the same length as the 150. The sidelever
is again revised, shortened to about the front of the movable breech sleeve, and the
complex "car door" latch is discarded in favor of a simple push-down release catch and
fixed handle. The trigger is again refined, the blade now able to be moved and pivoted.
The simple straight barrel sleeve of the earlier models is replaced by one with a
"stepped" front end, available in different weights and usually epoxied in place.

The basic Match stock is made much taller, especially the fore end which now comes to
the bottom of the trigger guard. A revised square guard fitting flush with the stock is
thus fitted (though Tyrolean guns--discontinued in 1978 after this style of stock is
disallowed in ISU matches--continue to use the previous trigger guard).

Remaining in production for almost 30 years, other basic versions of the gun eventually
appear. The Mini (called Junior in Europe) uses a shorter stock, and shorter barrel with
no sleeve, to create a gun more suited to smaller shooters. The Match L has a longer
fore end and higher cheekpiece, and is discontinued in 1984. The Universal, similar in
shape to the L but with an adjustable-height cheekpiece, is released in 1978. A special
version for Running Boar shooting (called the 300 LS or "Laufende Scheibe" in Europe)
has a greatly revised stock and a different trigger assembly.

The basic 300S action is revised in detail over the years, with different front sights,
trigger blades, and minor internal refinements. All of the woodwork models receive
various revisions and sub-variants as well, creating enough differences to fill a small
book!

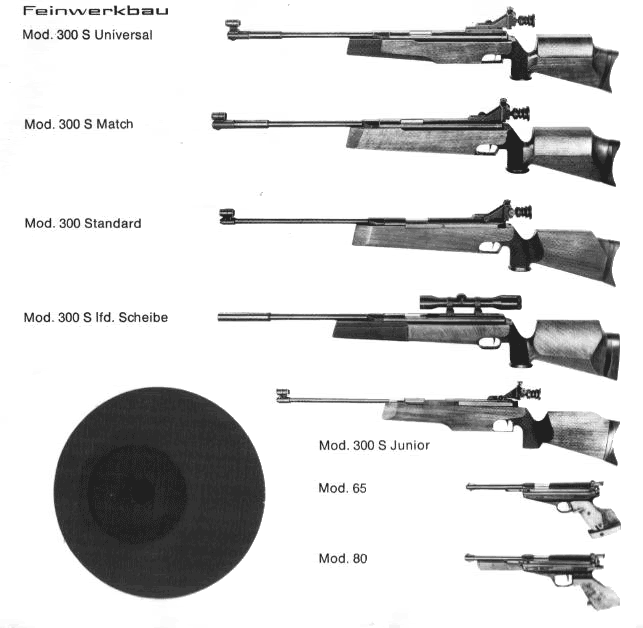

Och några varianter av 300S


User avatar
Tomaz
Airgun Pro (medium)
Posts: 4733
Joined: Fri May 20, 2005 7:38 pm

Re: Den stora tråden om Feinwerkbau 300S

Post by Tomaz » Mon Jan 21, 2008 9:07 pm

Här finns en lista över tillverkningsdatum för FWB 150, 300 och 300S

FWB Model 150 (Tillverkning började 1963)

FWB 150 -- 2624 -- 10/63

FWB 150 -- 6451 -- 7/64

FWB 150 -- 6776 -- 8/64

FWB 150 -- 31257 -- 11/67

FWB 150 -- 32660 -- 1/68

FWB Model 300 (Tillverkning började 1969)

FWB 300 -- 61000 -- 11/69

FWB 300 -- 63657 -- 1/70

FWB 300 -- 69992 -- 7/70

FWB 300 -- 73190 -- 10/70

FWB 300 -- 75667 -- 11/70

FWB 300 -- 84461 -- 6/71

FWB 300 -- 94765 -- 2/72

FWB 300 -- 98616 -- 4/72

FWB Model 300S (Tillverkning började 1972)

FWB 300S -- 104952 -- 9/72

FWB 300S -- 123222 -- 7/73

FWB 300S -- 126809 -- 9/73

FWB 300S -- 128486 -- 10/73

FWB 300S -- 135130 -- 1/74

FWB 300S -- 135366 -- 1/74

FWB 300S -- 136047 -- 1/74

FWB 300S -- 139676 -- 2/74

FWB 300S -- 1487xx -- 6/74

FWB 300S -- 156834 -- 1/74

FWB 300S -- 160953 -- 12/74

FWB 300S -- 169334 -- 4/75

FWB 300S -- 185763 -- 1/76

FWB 300S -- 192952 -- 5/76

FWB 300S -- 197619 -- 8/76

FWB 300S -- 198145 -- 8/76

FWB 300S -- 202785 -- 9/76

FWB 300S -- 210105 -- 12/76

FWB 300S -- 215428 -- 3/77

FWB 300S -- 230303 -- 10/77

FWB 300S -- 237542 -- 1/78

FWB 300S -- 244585 -- 5/78

FWB 300S -- 251939 -- 8/78

FWB 300S -- 2533XX -- 9/78

FWB 300S -- 257144 -- 10/78

FWB 300SU -- 262092 -- 12/78

FWB 300S -- 2645XX -- 1/79

FWB 300S -- 274206 -- 7/79

FWB 300SU -- 274882 -- 7/79

FWB 300S -- 277703 -- 10/79

FWB 300S -- 281368 -- 1/80

FWB 300S -- 296566 -- 9/80

FWB 300SU -- 302778 -- 12/80

FWB 300S -- 312253 -- 4/81

FWB 300S -- 316804 -- 10/81

FWB 300S -- 3263XX -- 4/82

FWB 300S -- 328579 -- 5/82

FWB 300S -- 331129 -- 8/82

FWB 300S -- 334063 -- 11/82

FWB 300S -- 3416XX -- 4/83

FWB 300S -- 348497 -- 3/84

FWB 300S -- 354537 -- 1/85

FWB 300S -- 361460 -- x/86

FWB 300S -- 362953 -- 9/86

FWB 300S -- 364191 -- 3/87

FWB 300S -- 3696XX -- 9/89

FWB 300S -- 370598 -- 4/90

FWB 300S -- 373921 -- 6/92

FWB 300S -- 3778XX -- 7/98

User avatar
Tomaz
Airgun Pro (medium)
Posts: 4733
Joined: Fri May 20, 2005 7:38 pm

Re: Den stora tråden om Feinwerkbau 300S

Post by Tomaz » Mon Jan 21, 2008 9:30 pm

...Och här är mina personliga renoveringstips för FWB 300S...
Inga större konstigheter att fixa till sin FWB 300S själv.
En FWB 300S blir otroligt mycket trevligare att skjuta med om man får tag i en passand fjäder från Maccari.
Man får en snabbare locktime, ingen twang och vibrationer, en utgångshastighet på ca 200m/s med JSB Exact.
Och allt detta med bibehållen precision och rekylfrihet. Det går egentligen inte att beskriva hur bra det blir, det måste upplevas... :D

Tyvärr är tillgången på maccarifjädrar inte så stor. Han tillverkar dom i små upplagor då och då och man får hålla koll på maccaris hemsida på Today“s Special när han har några till salu..

http://www.airguns.citymax.com/page/page/251327.htm


...Och lite tips innan fjäderbytet:

Först kan du ju kika igenom länkarna här innan du demonterar bössan..

Sprängskiss:
http://img.photobucket.com/albums/v206/ ... ggande.jpg

Demontering på tyska:
http://www.co2air.de/wbb2/thread.php?postid=112107

Demontering på engelska:
http://www.pilkguns.com/tenp/fwb300fieldstrip.htm
http://www.pilkguns.com/tenp/fwb300s.htm


När du har demonterat bössan:

Torka bort allt gammalt smörjmedel...

Byt pippckning och pistongbuffer (beställ från sportec.se )

Använd mycket sparsamt med smörjmedel... (jag använder maccari clear tar som smörjmedel i hela bössan)

Liten klick fett i båda fjäderändarna, en tunn hinna på resten av fjädern..

En mycket tunn hinna runt kompressionsringen, inget mer i kompressionstuben eller pistongen..

En tunn hinna utanpå kompressionstuben..

Inget smörjmedel på glidpinnarna längst fram på cylindern..(annars riskerar man att släden glider för lätt och man känner rekyl i bössan)

Smörj alla gildytor på leder och laddarm..

Sätt ihop bössan, skjut och njut...
Last edited by Tomaz on Mon Jan 21, 2008 10:10 pm, edited 1 time in total.
